0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding

0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding

    • 0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding
    • 0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding
    • 0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding
  • 0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding

    Product Details:

    Place of Origin: China
    Brand Name: WILLSTRONG
    Certification: CE, ASTM, ISO
    Model Number: ACCP001

    Payment & Shipping Terms:

    Minimum Order Quantity: 600 Square Meters
    Price: US $20-40/ Square Meter
    Packaging Details: Bulk Packing or Wooden Pallets
    Supply Ability: 6000000 Square Meter Per Year
    Contact Now
    Detailed Product Description
    Type: Metal Roof Material: Aluminum Alloy
    Specification: Customized Metal Curtain Wall Kind: Aluminum Panel Curtain Wall
    High Light:

    corrugated aluminum panels

    ,

    aluminium sandwich panel

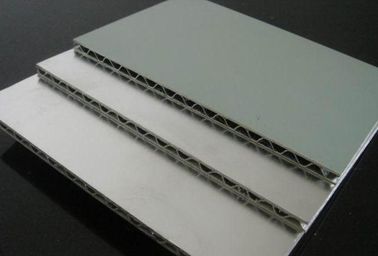

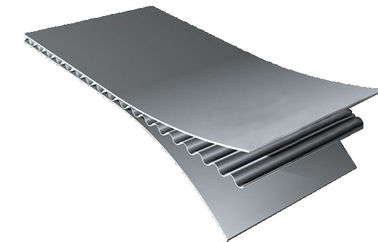

    Aluminum Corrugated composite Panel is a high strength composite panel composed of Aluminum sheets and aluminum corrugated core laminated by adhesive with continues hot composite process . In the shape of water wave , which is greatly improve the adhesion strength since the arc area adhesive to the aluminum sheet on both sides . It can keep the advantages of honeycomb panel, perfect the disadvantage of Aluminum Composite Panel and could be widely applied.

    0.2mm Thickness Corrugated Aluminum Roofing Panels , Aluminium Sandwich Panel For Wall Cladding

    Specification

    Material of Aluminum sheet

    Aluminum Alloy AL3003H16-H18

    Thickness of the front sheet

    0.8-1.0mm

    Thickness of the back sheet

    0.4 - 0.5mm

    Material of Aluminum corrugated sheet

    Aluminum Alloy AL100H16-H18

    Thickness

    0.2mm

    Aluminum Corrugated Composite Panel Sandwich Panel

    Advantage

    Sound Absorption Noise reducing

    Due to the special designed V shape of core material , sound will reflect and decay passing the panel.

    Weather Resistance

    PVDF coating on surface has a perfect performance on weather resistance, thus can maintain the original color under tough environment.

    Durability

    The v shape design is a guarantee of the strength.

    Light in weight

    Compared to solid aluminum panel, this kind of structure is much lighter in a same size.

    Recoverability

    Totally made by aluminum, 100% recyble

    Machinability

    The structure is designed very easy to cut, connect, bend, etc, any processing method is available.



    Application

    1

    Wall Cladding System , interior and exterior

    2

    Roof , Ceiling , Partitions materials

    3

    Lift and Elevator decoration material

    4

    Train and high speed subway, material of boat and motor homes

    5

    Furniture material
