3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness

3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness

    • 3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness
    • 3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness
    • 3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness
  • 3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness

    Product Details:

    Place of Origin: CHINA
    Brand Name: WILLSTRONG
    Certification: SGS
    Model Number: AHP 06

    Payment & Shipping Terms:

    Minimum Order Quantity: 600M2
    Price: $45/M2
    Packaging Details: protective film
    Contact Now
    Detailed Product Description
    Material: Aluminium Color: Red/green/silver/blue
    Size: 1500*6000*10MM Thickness: 10/15/20/25/30/35mm
    High Light:

    aluminum honeycomb sandwich panels

    ,

    aluminum honeycomb panels

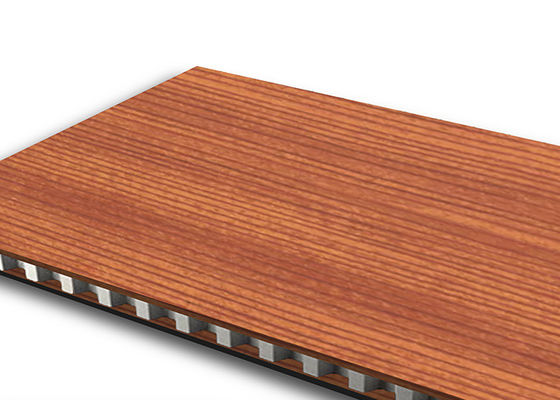

    WILLSTRON® Dynamic Honeycomb Panel, a high-tech product introduced using aerospace manufacturing technology combined with advanced surface roll coating processes. It is not only durable, large plate surface, high compressive strength, but also has excellent flatness, excellent sound insulation, heat insulation, fire protection, and shockproof performance. Dynamic honeycomb panels can be bent, have good processing performance, and have a variety of surface treatments. They are widely used in high-end yachts, building curtain walls, transportation facilities, ceilings, partitions, and furniture applications.



    Sizes and Tolerance



    Conventional Dimension (for Rectangular plate):
    Thickness :   6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
    Width:   1220mm, 1250mm, 1500mm
    Length:   ≤ 8000mm,
    Aluminium Cover sheet:   front alu:1.0/0.7mm; rear alu: 1.0/0.7/0.5mm
    Tolerance(based on rectangular plate):
    Sides Length:   ±2.0mm (L≤2000mm)
    ±3.0mm (L>2000mm)
    Thickness:   ±0.25mm
    diagonal length difference:   ≤3.0mm
    Edge straightness:   ≤2.0mm/m
    Flatness:   ≤2.0mm/m

    For other shapes, the sizes and tolerance may be negotiated additionally.



    Instead of cutting and folding on flat plate to achieve the angle shape, we produce it directly with our state-of-the-art production line under vacuum condition. This ensure the perfect mechanical properties of the plate.



    3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness    3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness



    3D Shaped AHP 06 Metal Honeycomb Panels Roll Coating 2.0mm/m Edge Straightness
