|Place of Origin:||Guangzhou , China|
|Minimum Order Quantity:||By project|
|Packaging Details:||Wooden Packing , Containers|
|Delivery Time:||15 - 20 days|
|Payment Terms:||L/C , T/T|
|Supply Ability:||30000 suqre meter per month|
|Color:||Marble / Granite Texture||Material:||Aluminum 3003H24|
|Hardness:||ASTM D3363||Luminosity:||ASTM D523|
|Wet - Bearable:||ASTM D2247||Salt - Fog - Bearable:||ASTM B117|
|Durability:||ASTM D2244 D523||Ageing - Bearable:||ASTM D659|
aluminum veneer sheets,
aluminum laminated panels

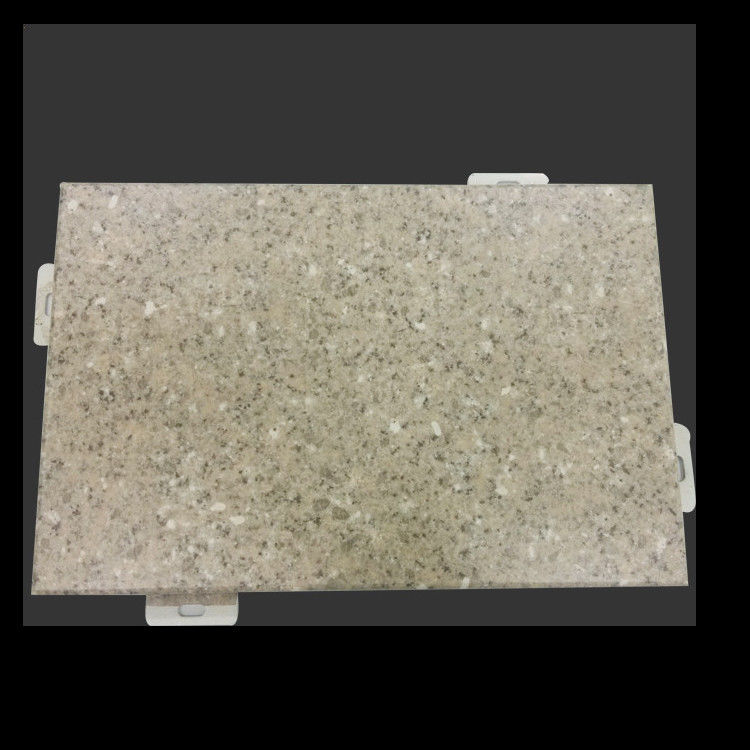

Aluminum Veneer Panel of Marble Granite Texture Light Weight High Rigidity
WILLSTRONG aluminum veneer panel is made of high-strength aluminum alloy A3003H24 or A5005H24 . The general thickness of wall cladding is 2.0mm , 2.5mm , 3.0mm , and 1.5mm 1.2mm for ceiling , maximum sheet width of 3000mm or less , the maximum length is usually less than 6000mm .
Its structure is mainly composed of panels , stiffeners and angle code components . Corner directly from the panel stamping, bending and forming, but also on the panel riveted small folding angle code. Stiffener welding screws after connecting with the board , so that each piece of aluminum veneer into a solid whole , greatly enhanced the strength and rigidity of the aluminum veneer , and aluminum veneer ensure flatness and long-term use of anti-wind seismic capacity .
If you need sound insulation , sound insulation can be installed efficient thermal insulation material on the inside of aluminum veneer .
|Product name||China Custom exterior Stone/Marble/Wood Grain Aluminum Curtain Wall Panel for building|
|Material||Aluminum, Aluminum alloy 1100/3003/5005|
|Finish||Powder Coating/ Roller painting/ PVDF painting/Imitation wood or stone grain|
|Guarantee||PVDF painting:15 years guarantee for color, the aluminum material can be use for 50 years, high recycle value;|
|Roller painting:10 years guarantee for color, the aluminum material can be use for 50 years, high recycle value;|
|PE coating/ Imitation: 5 years guarantee for color in interior, the aluminum material can be use for 50 years, high recycle value;|
|Powder coating: 2 years guarantee for color in interior, the aluminum material can be use for 50 years, high recycle value.|
|Paint Brand||PPG, Akzo Nobel, Normal brands...|
|Oversea market||Asia, America, Europe, Mid-east, South America, etc|
|Size||Max length: 6m, Max width: 3m, sizes and design are available according to your detail drawings|
|Ceiling Type||Plain / Perforated, Straight/ Belved angle|
|Package||Protective film and carton box package/Wooden box package|
|1. Price can be based on FOB, Ex-work, CNF, CIF...|
|2. MOQ: 200 Square Meter/Square Meters|
|Trade Terms||3. Payment: 30% T/T deposit before production and 70% balance before loading;|
|Other Payment: via Alibaba trade inssurance.|
|4. Production time: Normally10-15 working days, will depend on the panel drawings and quantity|
|Certifications||ISO, Factory quality and environment certificates...|
Advantages of Aluminum Panel
1. Light Weight , High Rigidity , High Intensity . 8kg/㎡ (thiciness : 3mm), Tensile Strength : 100-280 N/m㎡
2. Good performance in weather resistance and erosion resistance . Surface coating in PVDF deliver 25 years color maintaining .
3. Satisfying machinability. A variety of shapes including plane or non - plane can be achieved.
4. Uniform coating, diversity colors. The advanced electrostatic spraying technology make the paints stick to aluminum uniformly and have a various choice in colors.
5. Hard to smear, easy to keep clean. The non-adhesive of PVDF show an excellent performance in self - cleaning.
6. Convenient in installation. Aluminum venner is assembled in factory, no needed shearing at construction site, save installation time.
7. Recyclable, environment - friendly. Differ from glass, marble, aluminum panel can be recycled 100%.
Projects of Aluminum Veneer Panel
