| Place of Origin: | CHINA |
| Brand Name: | WILLSTRONG |
| Certification: | ISO9001, ISO14001, OHSAS18001, INTERTEK, SGS, TUV, PSB, etc |
| Model Number: | CCAC AS-06 |
| Minimum Order Quantity: | 20Tons |
|---|---|
| Price: | US $2,300 to 4,800/ Ton |
| Packaging Details: | Carton and Woodden Pallet |
| Delivery Time: | 10-20 Work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 40Tons/Day |
| Product Name: | Aluminum Coil | Panel Thickness: | 0.3~10 Mm |
|---|---|---|---|
| Standard Size: | 1220*2440mm | Aluminum Alloy: | AA1100/AA3003/AA5005/AA5052 |
| Core Layer: | PE/PVDF/FEVE | Application: | For Roofing, Manufacturer Of ACP, AHP, Etc |
| Material: | Aluminum | Color: | Various Color Availabl |
| High Light: | colored aluminum foil sheets,aluminum siding coil |
||

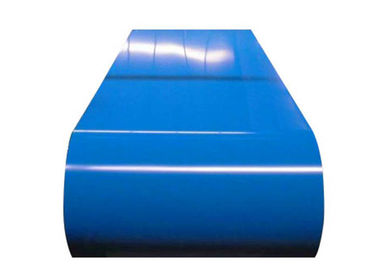

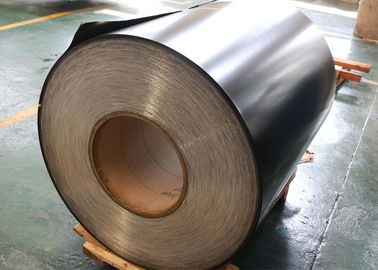

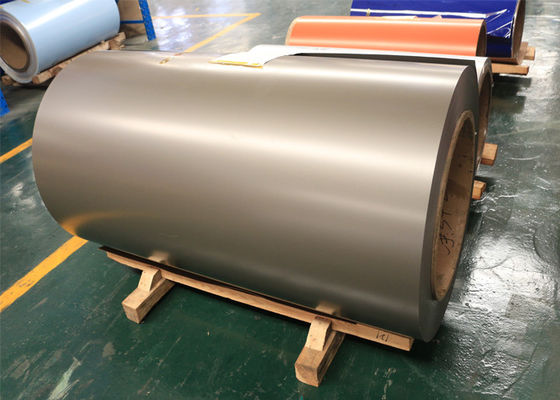

WILLSTRONG COLOR-COATED ALUMINIUM COIL
WILLSTRONG color-coated aluminium coil combines all advantages of modern coil-coating technology in our full-automatic production line. we can created pattern like Wood, stone, graphic as you want. The aluminium substrate gets degreased, chemically pre-treated and coated in a single production step which resulting in a high-quality uniform coating reproducible at any time and a material which has been developed for easy processing for a variety of application.
COATING MATERIAL
We have various of coating material , such as Ployester, PVDF, FEVE, Epoxy, Polyamide, Polyurethan, etc. these are core layer materials
Color Coated Aluminum Coil Characteristics:
- High temperature resistant
- Weathering resistant
- Scrubbing resistant
- Sound insulation
- Acid or alkali proof
- Fireproof
- Light weight material is easy to construct and install
- Bright colors
- Easy molding process,not rusting etc.

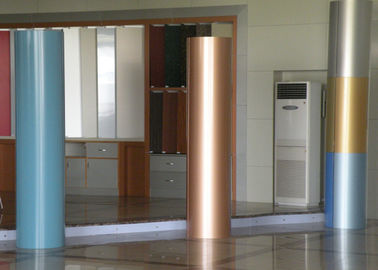

Alucosuper prepainting aluminum coil are made from AA3004 mill finish after degreasing, cleansing and passivated layer processing, and currently most advanced and durable coating materials manufactured by KANAR500 and HYLAR5000 seriess of polyvinylidene fluoride (PVDF) resin. The products are finally molded through other secondary operations including cutting, pressing, punching and bending, which can be applied in overall roofs and building coil for wall decoration with a long span and a large area, be used for decorative coil of interior roofs through being cut into small coil, bending and stamping die processing, and be used for energy-saving exterior wall decoration coil bonding with foaming polyurethane or honeycomb aluminum.
|
SPECIFICATIONS
|
|||
| Thickness: | 0.21-1.5mm normally, could be custom-made | ||
| Width: | for coil: 600mm ~ 1800mm, could be custom-made for sheet: 20mm ~ 1650mm, could be custom-made |
||
| Film thickness: | single-coated 4-20 micron double coated 25-28 micron 3 coated 35-38 micron | ||
| Coating material: | PVDF, PE, EXPOXY, PU | ||
| Colour choose | customer colours are also avliliable | ||
| RAL colours can ben availiable | |||
| Directly choose colours from alucosuper colour chart | |||
Basic Info
| Panel Thickness | 3~10 mm |
| Standard size | 1220*2440mm |
| Aluminum Alloy | AA1100, AA3003 |
| Core Layer | PE, Aluminum honeycomb, fr, corrugated aluminum etc.. |
| Width | 1220mm, 1250mm, 1500mm, 1575mm |
| Length | 2440mm, 3200mm, 4000mm, 5600mm |
| Weight | subject to panel thickness |
| Surface on front side | Polyvinylidene Fluoride (PVDF), FEVE, PET |
| Color ranges | refer to WILLSTRONG color chart, or alternative RAL/PANTONE/DULUX color series |
| Glossiness | upon requirements |
| Back side finishes | protective coating |
*** Custom specifications are negotiable ***
