| Place of Origin: | CHINA |
| Brand Name: | WILLSTRONG |
| Certification: | CE/ISO/SGS |
| Model Number: | WS-AHP |
| Minimum Order Quantity: | 600sqm |
|---|---|
| Price: | 25-30sqm |
| Packaging Details: | wooden pallet |
| Delivery Time: | 20days |
| Supply Ability: | 200, 000m2/year |
| Alloy: | 1100,3003,5005,5052 | Whole Thickness: | 4mm |
|---|---|---|---|
| Alu. Thick.: | 0.5/0.5mm | Coating: | PVDF 70%, Kynar |
| Width: | 1000/1220/1250/1500mm | ||
| High Light: | honeycomb stone panels,aluminum honeycomb sandwich panels |
||
Ultrathin Aluminum Honeycomb Panel with 4mm Whole Thickness & 0.5 Alu. Thickness
WILLSTRONG® AHP is an innovative composite materials in sandwich structure, composed of two thin aluminium cover sheets and hexagonal aluminium core, laminated under hot pressure by aviation-grade adhesive agent.
| Advantages | |
| Physical Performance | Excellent high rigidity, bending strength, light weight, perfect flatness, sound insulation, hot insulation, good machinability . |
| Shapes | Non-plane panel is possible, no need further process. |
| Varies of Dimension | Big size, up to 1500mm*6000mm |
| Durability | Excellent quality, durable for 20 years or more |
| Fireproof performance | non-combustible |
| Installation | Single panel independently dismounting ,easy for fabrication ,installation and maintain . |
| Jointing | Open style and closed style |

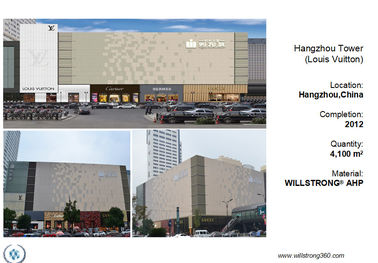

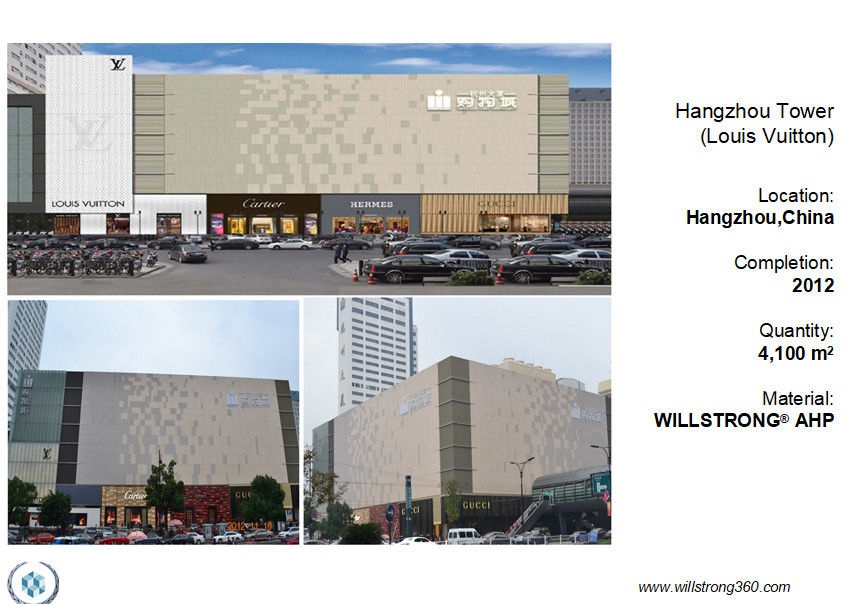

Project Reference with the material
