GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels

GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels

    • GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels
    • GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels
    • GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels
  • GBT 8624-2006 FRP Honeycomb Sandwich Panel , Honeycomb Insulation Panels

    Product Details:

    Place of Origin: CHINA
    Brand Name: WILLSTRONG
    Certification: SGS
    Model Number: AHP 07

    Payment & Shipping Terms:

    Minimum Order Quantity: 600M2
    Price: $45/M2
    Packaging Details: protective film
    Delivery Time: 15days
    Supply Ability: 10000M2/MONTH
    Contact Now
    Detailed Product Description
    Material: Aluminium Color: Red/silver/green/gold
    Size: 1.5*3MM Thickness: 10/15/20/25/35mm
    High Light:

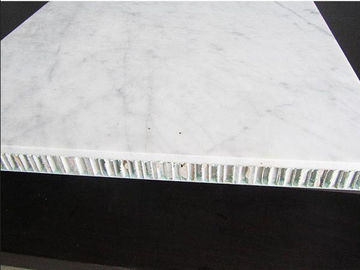

    honeycomb stone panels

    ,

    aluminum honeycomb sandwich panels

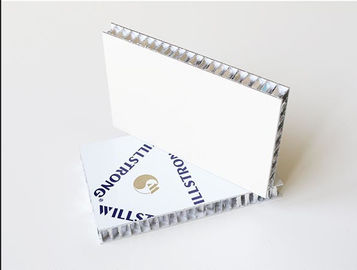

    WILLSTRON® Dynamic Honeycomb Panel, a high-tech product introduced using aerospace manufacturing technology combined with advanced surface roll coating processes. It is not only durable, large plate surface, high compressive strength, but also has excellent flatness, excellent sound insulation, heat insulation, fire protection, and shockproof performance. Dynamic honeycomb panels can be bent, have good processing performance, and have a variety of surface treatments. They are widely used in high-end yachts, building curtain walls, transportation facilities, ceilings, partitions, and furniture applications.



    Sizes and Tolerance



    Conventional Dimension (for Rectangular plate):
    Thickness :   6mm, 10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm
    Width:   1220mm, 1250mm, 1500mm
    Length:   ≤ 8000mm,
    Aluminium Cover sheet:   front alu:1.0/0.7mm; rear alu: 1.0/0.7/0.5mm
    Tolerance(based on rectangular plate):
    Sides Length:   ±2.0mm (L≤2000mm)
    ±3.0mm (L>2000mm)
    Thickness:   ±0.25mm
    diagonal length difference:   ≤3.0mm
    Edge straightness:   ≤2.0mm/m
    Flatness:   ≤2.0mm/m
    For other shapes, the sizes and tolerance may be negotiated additionally.



     Composing and Physical data



    Face Material Material: Al-mg-mn alloy , Copper, Zinc and Stainless Steel, etc
    Thickness:0.7mm or 1.0mm(other options are available)
    Back Material Material: Al-mg-mn alloy Copper, Zinc and Stainless Steel, etc
    Thickness:0.7mm or 1.0mm(other options are available)
    CORE

    Material: Aluminum Honeycomb Core
    Thickness:0.075mm(other options are available)
    Bore:4mm or 19mm
    Adhesive Adhesive film
    Surface PVDF Coating, PET Coating (other options are available)
    Size Length≤8000mm(other options are available)
    Width≤1500mm(other options are available)
    Thickness:6mm,12mm,20mm,25mm,35mm
    Weight 5.00~7.5kg/m2
    Color WILLSTRONG color chart or Customized
    FR GBT 8624-2006 Grade : A2

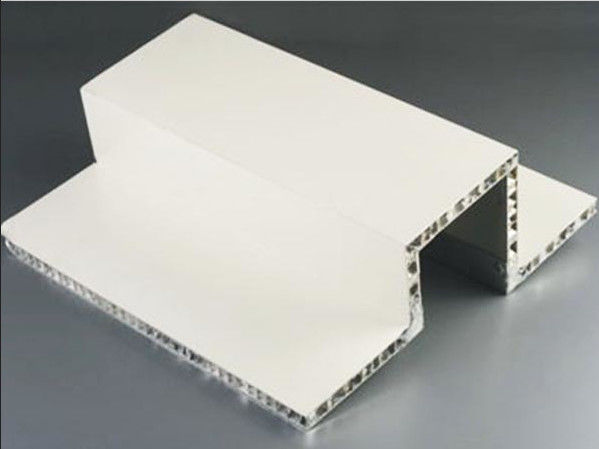

    Instead of cutting and folding on flat plate to achieve the angle shape, we produce it directly with our state-of-the-art production line under vacuum condition. This ensure the perfect mechanical properties of the plate.

    3D shaped Metal Honeycomb Panel for wall cladding3D shaped Metal Honeycomb Panel for wall cladding
