| Place of Origin: | CHINA |
| Brand Name: | WILLSTRONG |
| Certification: | ISO/ASTM/SGS |
| Model Number: | WS-ACP |
| Minimum Order Quantity: | 1000sqm |
|---|---|
| Price: | 7~18usd/sqm |
| Packaging Details: | wood pallet/ nude package |
| Delivery Time: | 15day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20,000㎡/day |
| Function: | Fire-resistance | Aluminum Alloy: | 1100/3003/5052 |
|---|---|---|---|
| Color: | Could Be Customized | Size: | 1220*2440mm |
| Thickness: | 4~10mm | ||
| High Light: | metal panel curtain wall,glazed aluminium curtain wall |
||

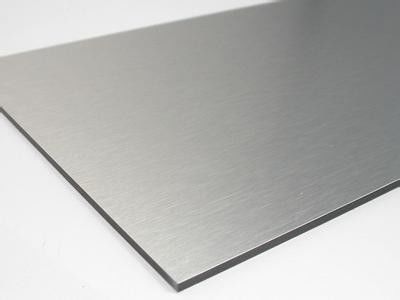

Fire-Resistant 5mm Aluminum Panel Spandrel Curtain Wall For Building Wall Panels
WILLSTRONG ACP
WILLSTRONG® ACPperformance parameter
| width | 1000mm, 1220mm, 1250mm, 1500mm | Customizable size | |
| long | 1000mm, 1220mm, 1250mm, 1500mm | ||
| Alloy brand | 1100, 3003, 5005, 3004, 5052 | ||
| Other alloy grades available upon request | |||
| Surface coating | PVDF 70% / Kynar 500 | 2 Coating Layers / Average ≥ 28um | 3 Coating Layers / Average ≥ 33um |
| Back coating | Average ≥ 5um | ||
| Core | High quality low density polyethylene | ||
| Fireproof Grade ( BS 476 part 6 & 7 ) Class '0' | |||
WILLSTRONG® aluminum composite panel is a new type of metal composite material made by coating aluminum sheet and a PE core material by a hot-press composite polymer adhesive film (or hot melt adhesive). It also has all the other features of WILLSTRONG® aluminum composite panels, such as light weight, flatness, and easy processing.
Application
WILLSTRONG® ACP -- Germany
WILLSTRONG® aluminum composite panels were inspected by authorities in Russia, France, Singapore, China, Malaysia and other countries. The quality of trust has been verified by numerous projects such as the restoration of Charles de Gaulle Airport in France, the building of the Russian Federation, and Senptinggan International Airport in Indonesia.
Optional color for WILLSTRONG ACP
