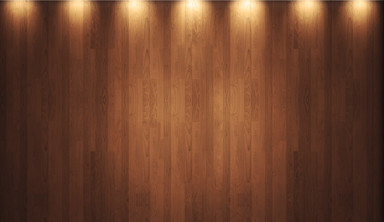

Polyethylene Core Wood Grain Aluminum Composite Panel Customized Color

Home Products Wood Grain Aluminum Composite Panel

Polyethylene Core Wood Grain Aluminum Composite Panel Customized Color

Product Details:

Place of Origin:	Guangzhou , China
Brand Name:	WILLSTRONG
Certification:	GB/T-17748-2016 ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	600sqm
Price:	Negotiable
Packaging Details:	Wooden Packing , Containers
Delivery Time:	15 to 20 days
Supply Ability:	30000 suqre meter per month

Contact Now

Detailed Product Description

Color:	Customertized Color	Material:	Aluminum Alloy
MOQ:	600SQM	Thickness:	3mm,4mm,5mm
High Light:	wood grain metal panels , composite wood panels exterior

Color:

Customertized Color

Material:

Aluminum Alloy

MOQ:

600SQM

Thickness:

3mm,4mm,5mm

High Light:

wood grain metal panels

composite wood panels exterior

Polyethylene core

By color: White PE core and Black PE core;

By function: Normal PE core, unbreakable PE core and fire-rated PE core.

Bottom coating

Mill finish or color coating

Coating thickness	ECCA-T1[1995]Comply with customer standard	Kynar 500, 70%+ FC resin 28um +
Gloss Deviation	ECCA-T2[1995]30 (60 °) +/- 5 E	Gloss
Colours Deviation	ECCA-T3[1995]ΔΕ≤0.8(CIE - L a b - system)	ΔE
Pencil hardness	ECCA-T4[1995] ≥H	2H
Impact resistance test	ECCA-T5[1995] 1 kg of weight falls from specified heigh	no detainting no cracking
T-Bending	ECCA-T7[1996] 0T Without severe cracks	1T
Coating adhesive	not lower than class 1	not lower than class 0
MEK-test	ECCA-T11[1999]	Over 200
Acid Resistance	70% HNO3 30mins	ΔE< 5%
Boiling test	Bended sheets 1.0T after 5 minutes in boiling water	without cracks
Tensile Strenght	155-180(Mpa)	≥155
Yield strength	≥130Mpa)	≥130
Elongation	≥3%	≥3%

This test resulte is randomly tested by internal QC department and result in average datebase.

Protective film

A layer of PE plastic tape, to protect the panel surface from scratch or damage. The thickness and sticky standard are various upon different supplier.

Color coating

By function: PE & PVDF. PE is used for interior, with 10 year life-long expectancy; PVDF coating, with resistance on UV, acid and alkali, is more suitable for exterior usage, with 15-20 year guarantee.

By color/pattern: solid color, metallic color, brushed finish, mirror finish, marble pattern, wooden pattern.

Aluminum skin

AA1100 and AA3003 are standard, other series are optional upon specified order.

Advantages:
