| Place of Origin: | China |
| Brand Name: | WILLSTRONG |
| Certification: | CE, TUV, ISO9001, PCT |
| Model Number: | 5318 |
| Minimum Order Quantity: | 600m2 |
|---|---|
| Price: | 7~20 |
| Packaging Details: | Bulk packing or wood packages |
| Supply Ability: | 10000000m2 |
| Width: | 1220mm, 1250mm, 1500mm | Alu. Alloy: | AA1100, AA3003 |
|---|---|---|---|
| Coating: | PVDF / PET | Function: | Fireproofing, Anti-static, Anti-Bacterial |
| Panel Thickness: | 3mm, 4mm, 5mm, 6mm | Alu. Thickness: | 0.21mm, 0.3mm, 0.4mm, 0.5mm |
| Color: | WILLSTRONG, RAL, PANTON | ||
| High Light: | aluminium curtain wall,glazed aluminium curtain wall |
||

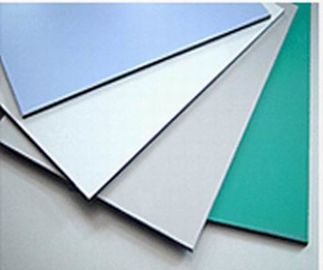

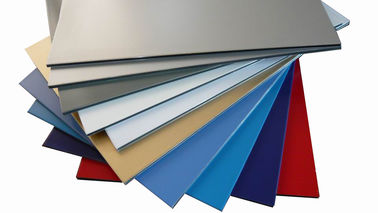

5318 Silver Metallic Color A2 / B1 Fireproof Aluminum Composite Panel with 1220MM Width
| Panel Thickness | 2~4mm |
| Standard size | 1220*2440mm |
| Aluminum Alloy | AA1100, AA3003, AA5005 |
| Core Layer | PE, Aluminum honeycomb, fr, corrugated aluminum etc.. |
| Width | 1220mm, 1250mm, 1500mm, 1575mm |
| Length | 2440mm, 3200mm, 4000mm, 5600mm |
| Weight | subject to panel thickness |
| Surface on front side | Polyvinylidene Fluoride (PVDF), FEVE, PET |
| Color ranges | refer to WILLSTRONG color chart, or RAL/PANTONE/DULUX color series |
| Glossiness | upon requirements |
| Back side finishes | protective coating |
Advantage of aluminum composite panel:
A. Light weight, good rigidity, high intensity, strong adhesion
B. Without any toxic materials, firepoof, anti-corrosion
C. Beautiful and delicate colors, good decorative effect
D. Easy to be fabricated to different sizes and shapes
E. Easy and fast installation, easy to recycle, no pollution.
| Front side | Aluminum-alloy sheet coated with flour-carbon resin (PVDF) OR PE roasting painting |
| Core | Nontoxic polyethylene |
| Back side | Aluminum-alloy sheet coated with polyester resin painting |
| Surface finish | Treated with PVDF OR PE resin rolling roasting coating |
| Outside | Protective carrier tape with brand logo |
Usage:

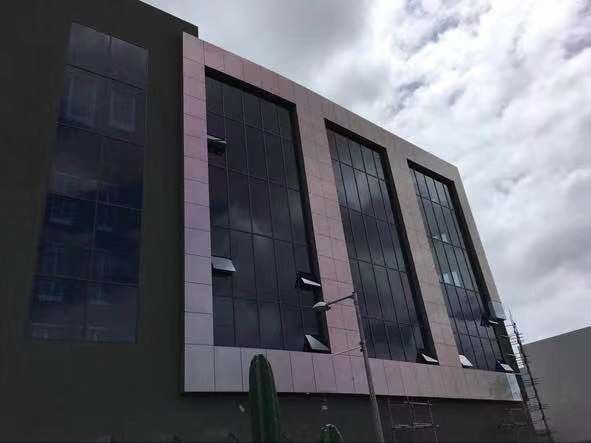

A. Match any commercial or residential interior and exterior decoration
B. Widely used in ceiling, floor, bathroom, kitchen, cabinet, tunnel, subway, billboards, exhibitions, saloons, car, boat decoration, and more
Payment Details:
Payment Terms: T/T or L/C
Minimum Order: 600-1000 Square Meter (upon the various finish)
Delivery Details:
FOB Port: Shunde, Shenzhen, Guangzhou
Lead Time: 7 - 15 days after receipt of advanced payment & confirmation on color
Packing:
Strong wooden packing or bulk packing
REMARKS: OEM SERVICE IS AVAILABLE
| Physical Data(Extraction from SGS Lab Report) | ||
| No. | Test Item | Result |
| 1 | Pencil Hardness | 2H |
| 2 | Impact Resistance | Impact failure end point:77.5kg.cm |
| 3 | Falling Sand Abrasion | Litres of abrasive: 79.0L |
| Coating Thickness:1.1mil | ||
| Abrasion Resistance: 71.8L/mil | ||
| 4 | Specific Gravity | 1.344 |
| 5 | Shear Strength | 21.8MPa |
| 6 | Heat Deflection Temperature | 114.8 ºC |
| 7 | Peel Strength | 0.98kg/mm |
| 8 | Flexural Modulus | 14060MPa |
| 9 | Tensile Strength | 35.1MPa |
| 10 | Elongation at break | 13% |
