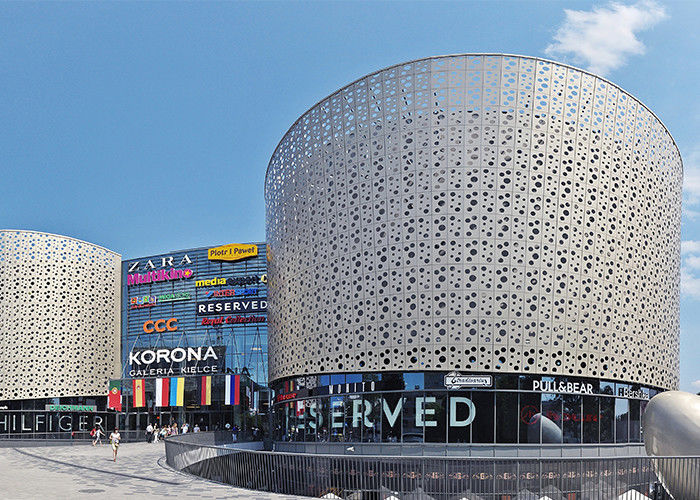

3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland

3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland

    • 3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland
    • 3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland
    • 3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland
  • 3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland

    Product Details:

    Place of Origin: China
    Brand Name: WILLSTRONG
    Certification: CE, TUV, ISO9001, PCT
    Model Number: 5318

    Payment & Shipping Terms:

    Minimum Order Quantity: 600m2
    Price: 7~20
    Packaging Details: Bulk packing or wood packages
    Supply Ability: 10000000m2
    Contact Now
    Detailed Product Description
    Width: 1220mm, 1250mm, 1300mm, 1500mm Alu. Alloy: AA1100, AA3003
    Coating: PVDF / PET Function: Fireproofing, Anti-static, Anti-Bacterial
    Panel Thickness: 3mm, 4mm, 5mm, 6mm Alu. Thickness: 0.21mm, 0.3mm, 0.4mm, 0.5mm
    Color: WILLSTRONG, RAL, PANTON
    High Light:

    aluminium curtain wall

    ,

    glazed aluminium curtain wall

    3D Sharp 4MM Punched Silver Color Aluminum Composite Panel Wall Cladding Project In Poland



    aluminum composite panel structure is essentially composed of three layers which together along with a covering of highly pressurized mirror like paint (PE or PVDF) combine to form a flat panel that represent art as well as the traditional romanticized look. The two layers of aluminum sheets are bonded together permanently with an internal core of polyethylene which when covered through the paint makes the surface even more flat and highly resistant. Mirror ACM has a class 1 fire rating and shatter resistant properties. ACP can be fabricated and have v-groove introduced for folding. Mirror aluminum composite is available in both a silver and gold finish.







    Panel Thickness 2~4mm
    Standard size 1220*2440mm
    Aluminum Alloy AA1100, AA3003, AA5005
    Core Layer PE, Aluminum honeycomb, fr, corrugated aluminum etc..
    Width 1220mm, 1250mm, 1500mm, 1575mm
    Length 2440mm, 3200mm, 4000mm, 5600mm
    Weight subject to panel thickness
    Surface on front side Polyvinylidene Fluoride (PVDF), FEVE, PET
    Color ranges refer to WILLSTRONG color chart, or RAL/PANTONE/DULUX color series
    Glossiness upon requirements
    Back side finishes protective coating





    Advantage of aluminum composite panel:

    A. Light weight, good rigidity, high intensity, strong adhesion
    B. Without any toxic materials, firepoof, anti-corrosion
    C. Beautiful and delicate colors, good decorative effect
    D. Easy to be fabricated to different sizes and shapes
    E. Easy and fast installation, easy to recycle, no pollution.

    Usage:
    A. Match any commercial or residential interior and exterior decoration

    B. Widely used in ceiling, floor, bathroom, kitchen, cabinet, tunnel, subway, billboards, exhibitions, saloons, car, boat decoration, and more


    Payment Details:
    Payment Terms: T/T or L/C
    Minimum Order: 600-1000 Square Meter (upon the various finish)
    Delivery Details:
    FOB Port: Shunde, Shenzhen, Guangzhou
    Lead Time: 7 - 15 days after receipt of advanced payment & confirmation on color

    Packing:
    Strong wooden packing or bulk packing

    REMARKS: OEM SERVICE IS AVAILABLE
    Physical Data(Extraction from SGS Lab Report)
    No. Test Item Result
    1 Pencil Hardness 2H
    2 Impact Resistance Impact failure end point:77.5kg.cm
    3 Falling Sand Abrasion Litres of abrasive: 79.0L
    Coating Thickness:1.1mil
    Abrasion Resistance: 71.8L/mil
    4 Specific Gravity 1.344
    5 Shear Strength 21.8MPa
    6 Heat Deflection Temperature 114.8 ºC
    7 Peel Strength 0.98kg/mm
    8 Flexural Modulus 14060MPa
    9 Tensile Strength 35.1MPa
    10 Elongation at break 13%




    3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland3D Sharp 4MM Punched Silver Color Aluminum Panel Curtain Wall Cladding Project In Poland
